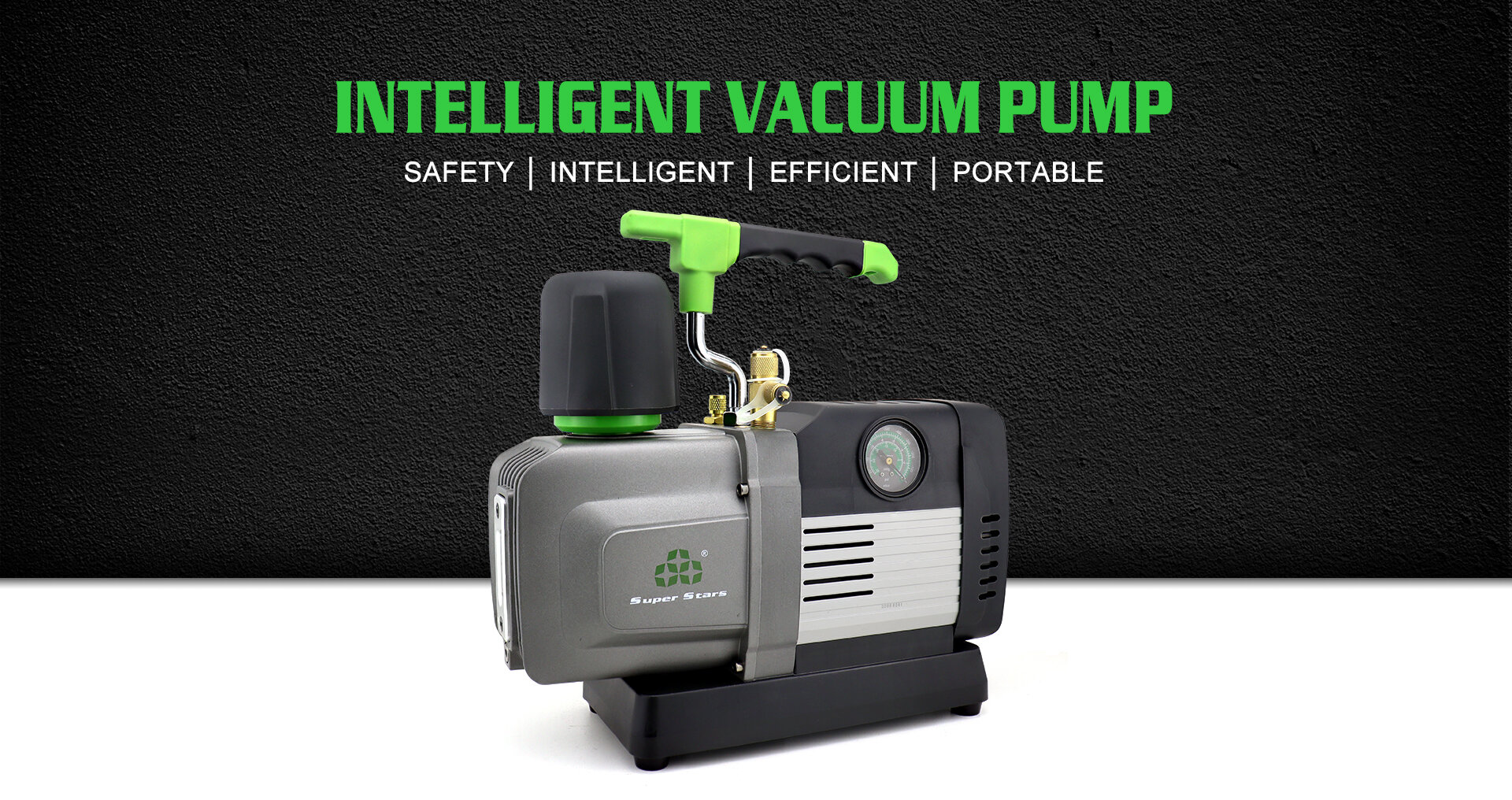

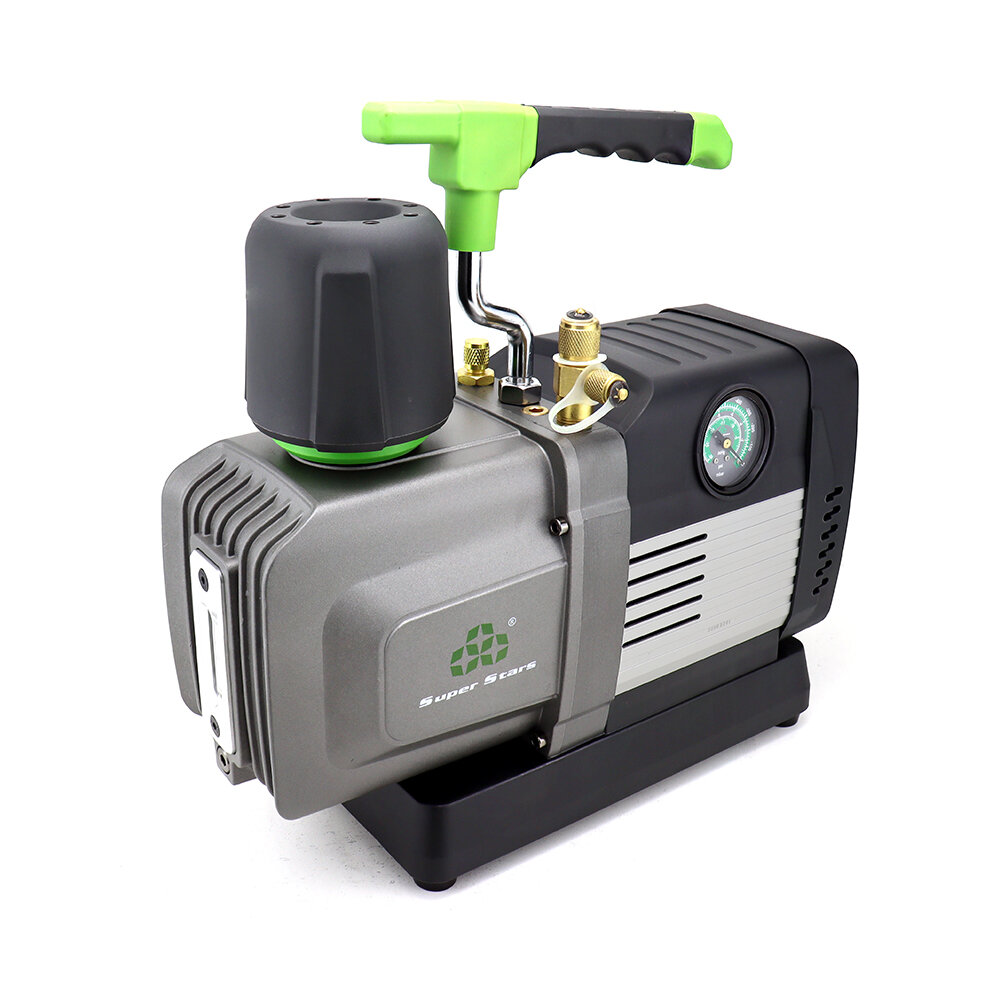

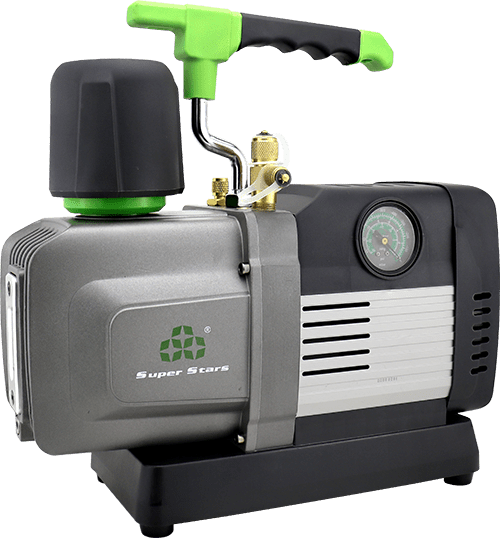

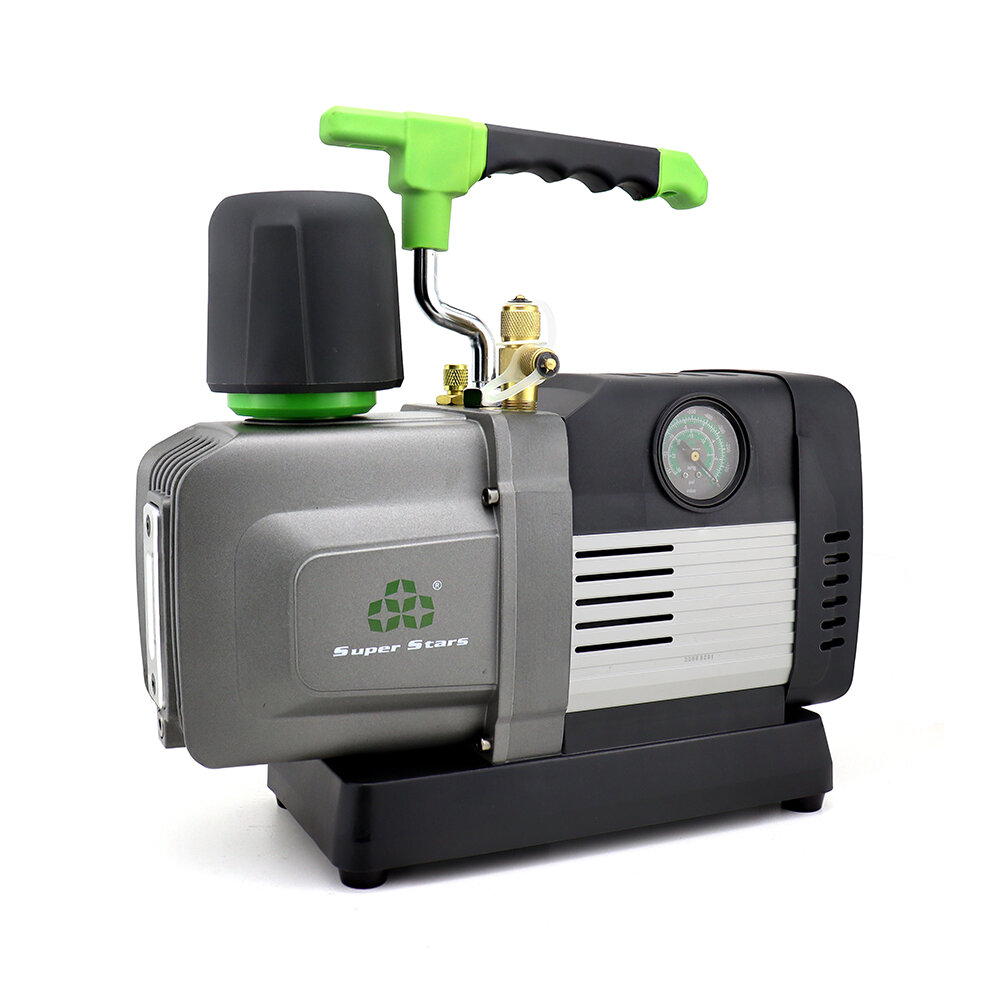

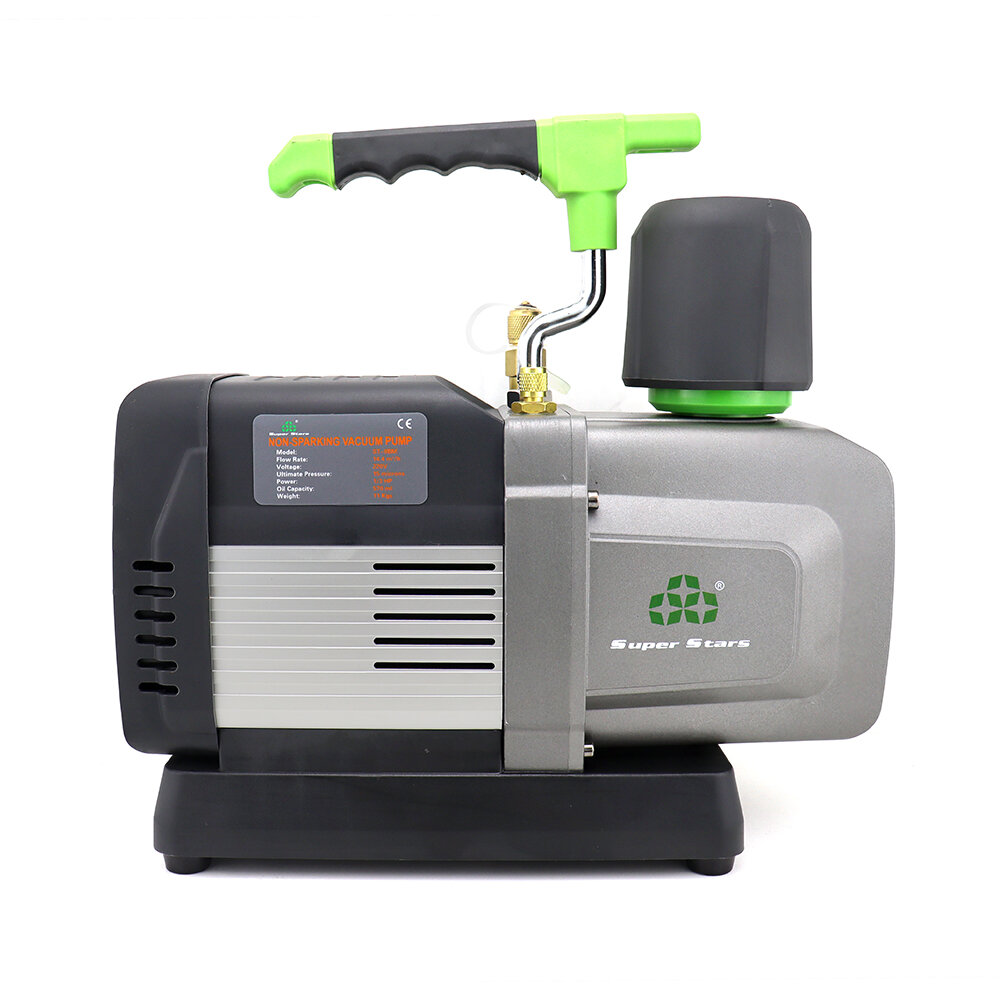

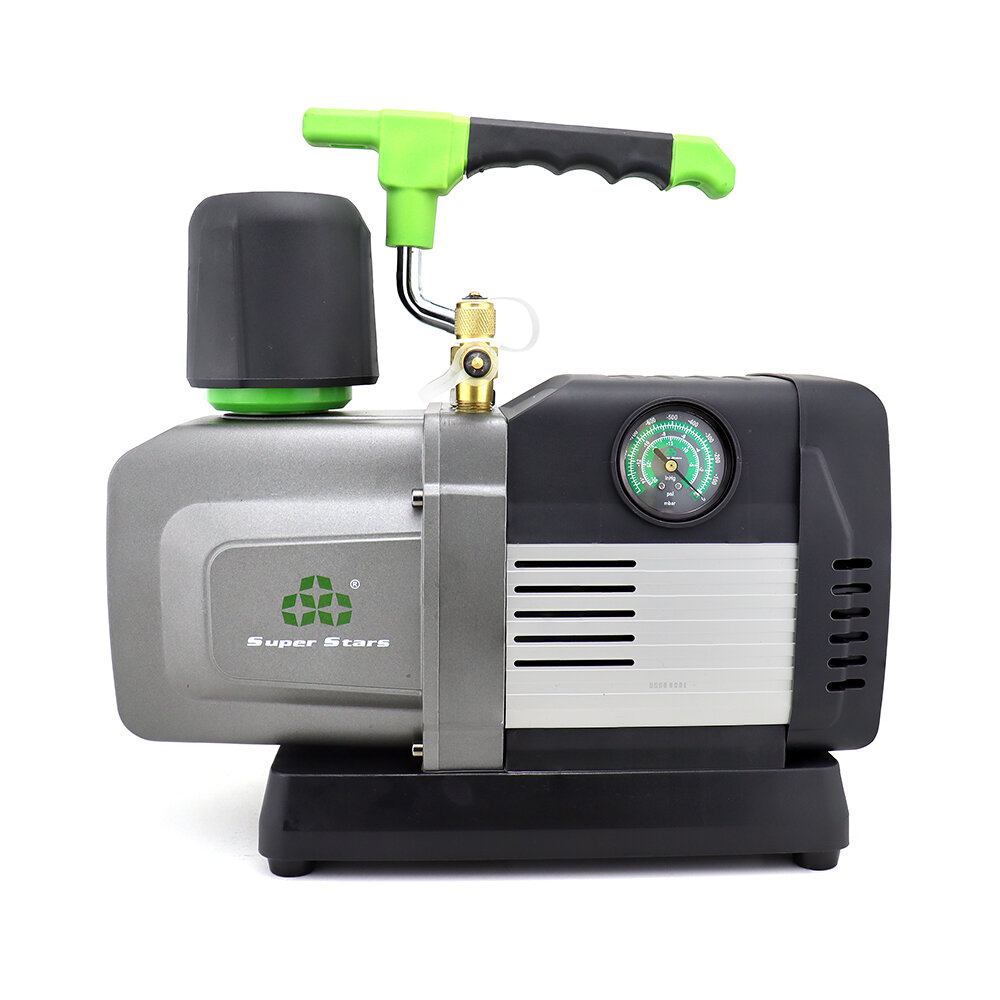

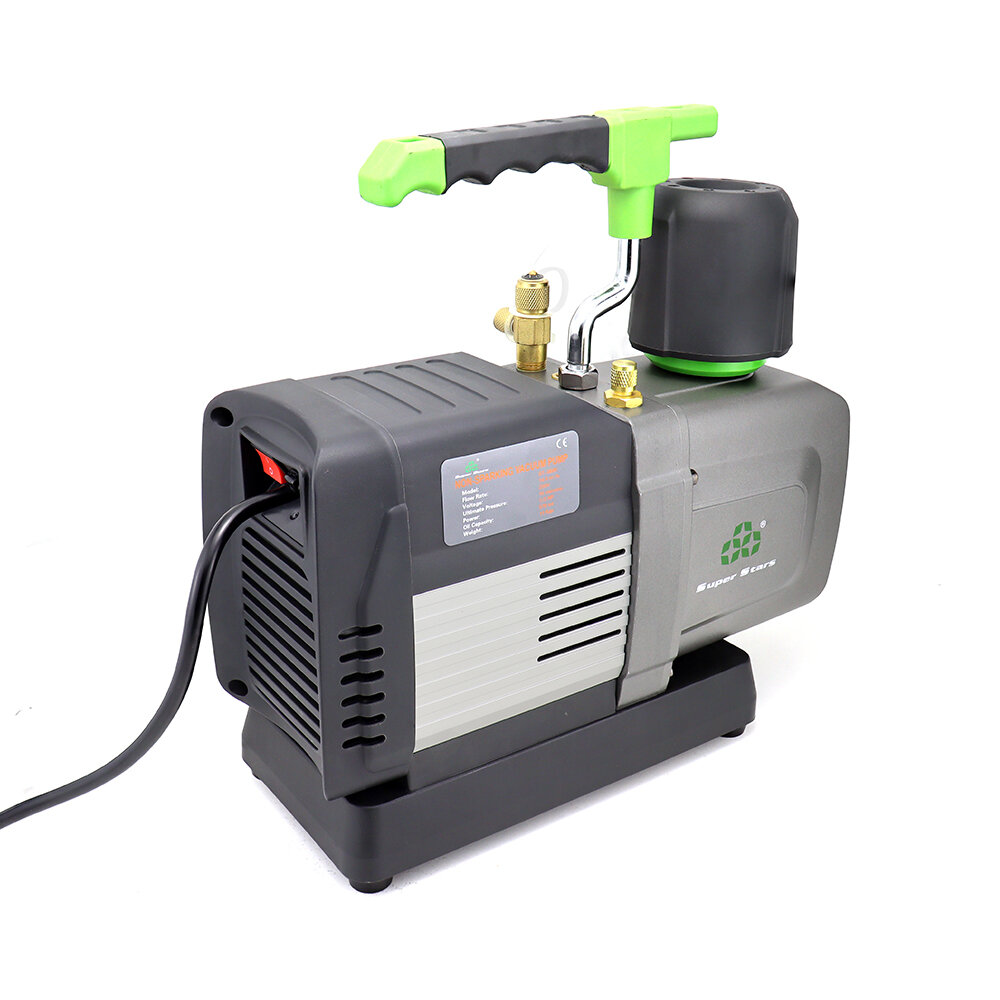

INTELLIGENT VACUUM PUMP

ST-8BM

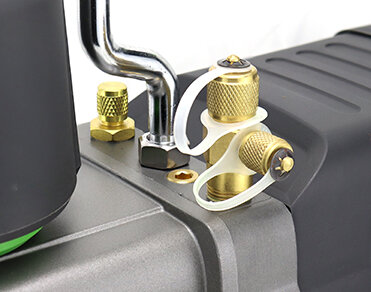

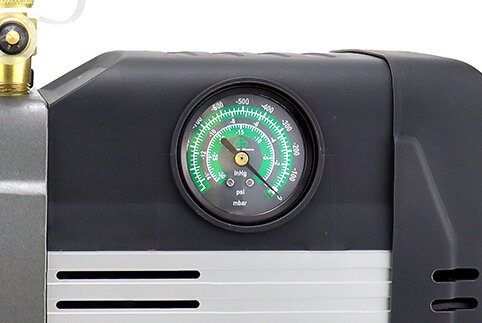

★ BUILT-IN SOLENOID VALVE & VACUUM GAUGE

★ SAFETY,  EXPLOSION-PROOF, SPARKLESS

★ DC BRUSHLESS MOTOR, MORE RELIABLE


SHARE：

FEATURES

SPECIFICATIONS

ST-8BM

Item No.ST-8SST-10SST-12SST-6BMST-8BMST-10BMST-12BM
Flow Rate8.5 CFM10.5 CFM12.5 CFM6.5 CFM8.5 CFM10.5 CFM12.5 CFM
241 L/MIN297 L/MIN354 L/MIN184 L/MIN241 L/MIN297 L/MIN354 L/MIN
Pole No.Single StageSingle StageSingle StageDual StagesDual StagesDual StagesDual Stages
Ultimate Vac.65 microns65 microns65 microns15 microns15 microns15 microns15 microns
Power1 HP1 HP1 HP1 HP1 HP1 HP1 HP
Inlet Port1/4" & 3/8" flare1/4" & 3/8" flare1/4" & 3/8" flare1/4" & 3/8" flare1/4" & 3/8" flare1/4" & 3/8" flare1/4" & 3/8" flare
Oil Capacity600 ml600 ml600 ml600 ml600 ml600 ml600 ml
Dimension349x139x333mm349x139x333mm349x139x333mm349x139x333mm349x139x333mm349x139x333mm349x139x333mm
Weight10.5 kgs10.5 kgs10.5 kgs11 kgs11 kgs11 kgs11 kgs
Voltage220V  50/60Hz
