★ The vacuum was measured at 99999Pa~ 0.1Pa.
★ Target vacuum alarm function.
★ One key full degree calibration.
★ System vacuum leak detection, identify the advantages and disadvantages of vacuum degree.

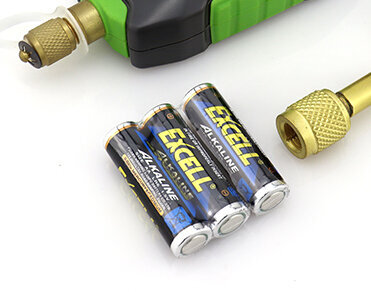

★ Portable design,battery power supply,power display,automatic shutdown (no operation for 10 minutes), etc.

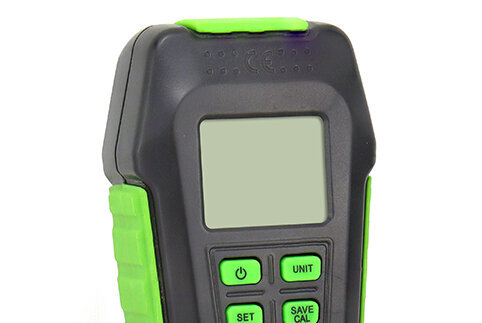

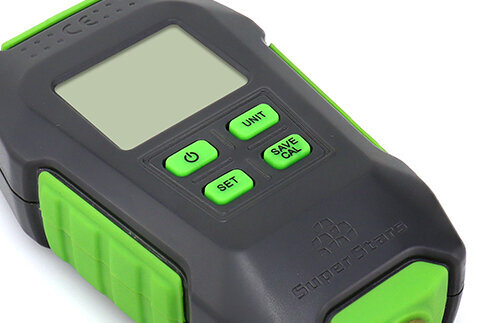

LARGE DIGITAL LCD DISPLAY
Sensitive buttons

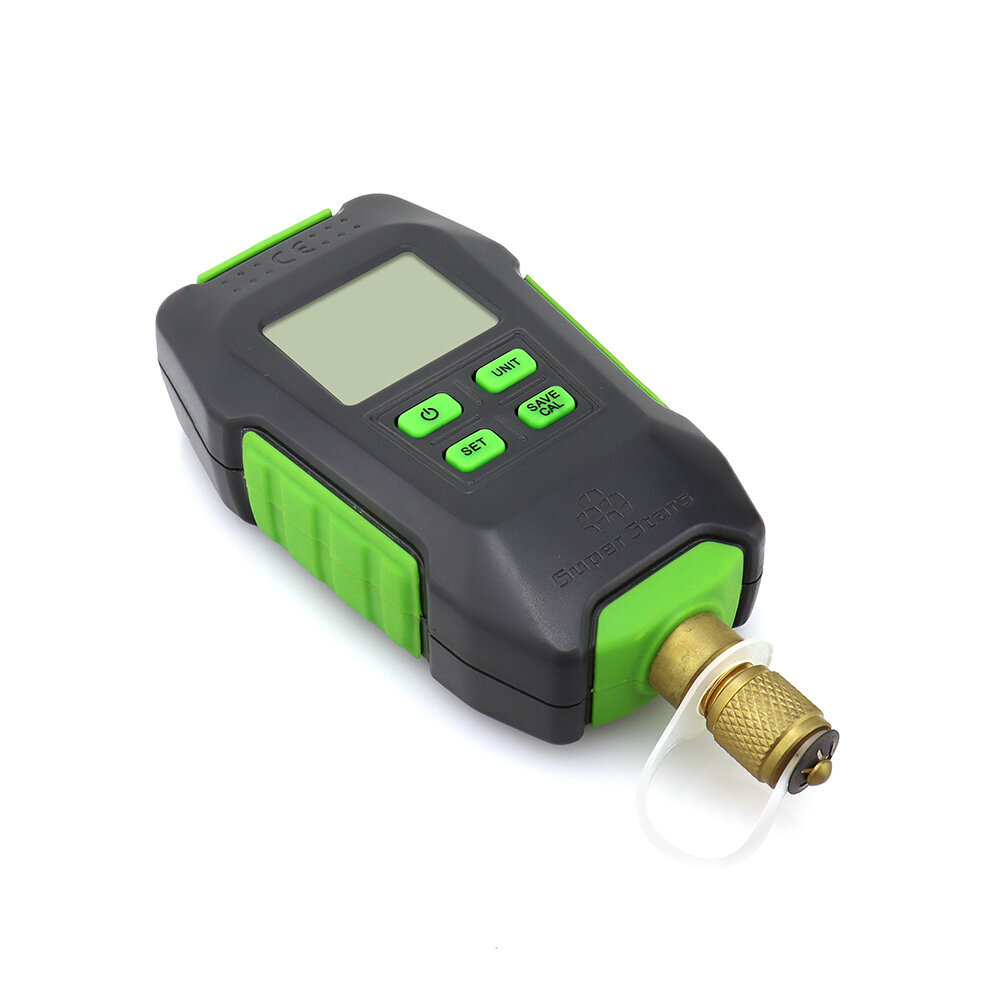

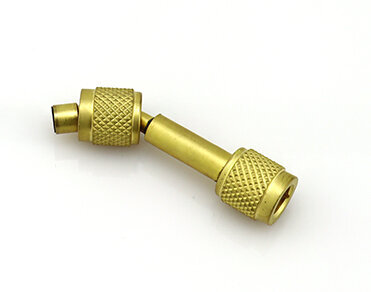

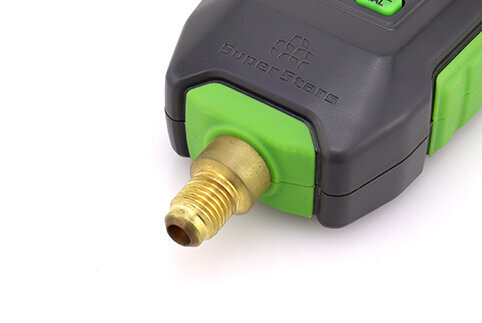

7/16"-20UNF CONNECTION

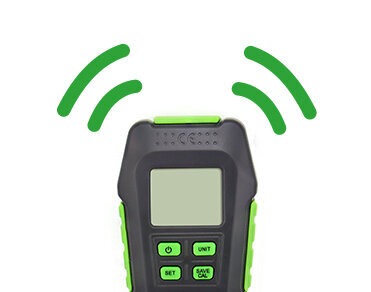

Instantaneous response

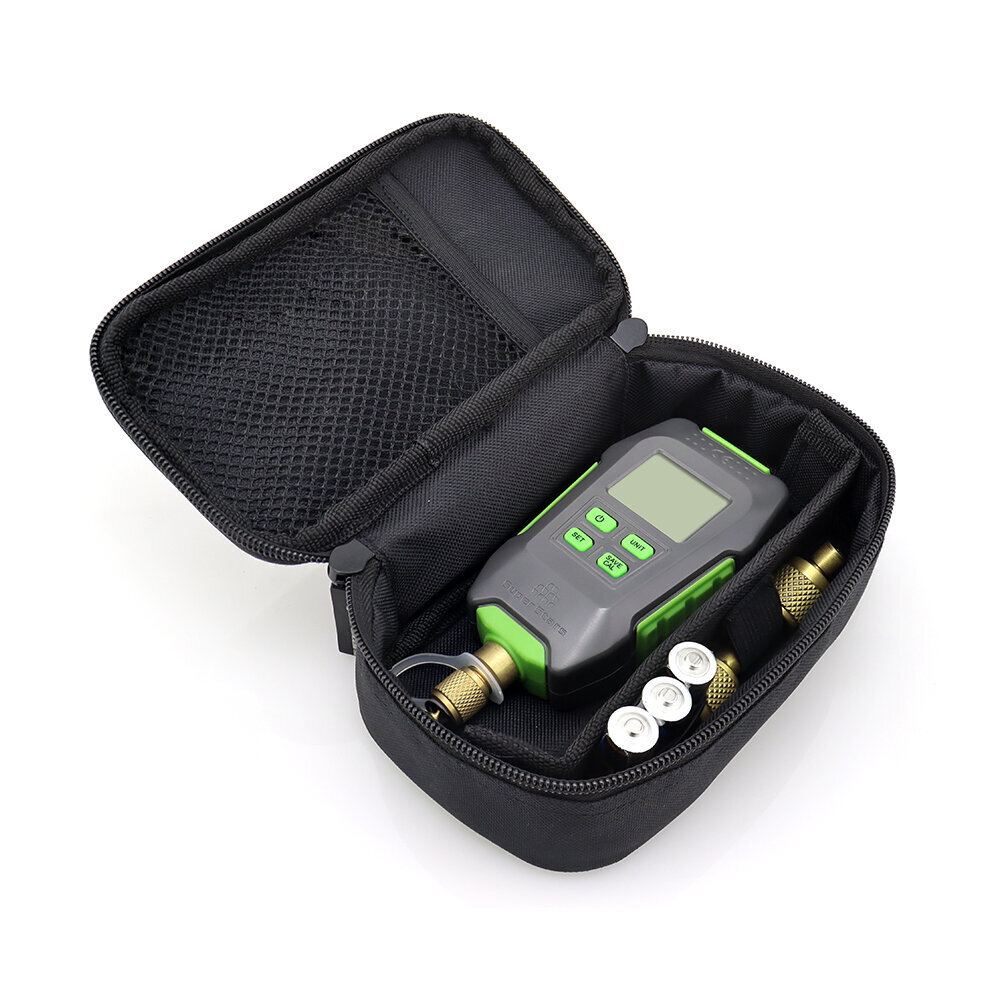

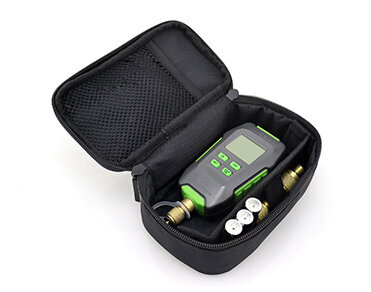

Compact tool kit, easy to carry
Meet different demands
Can be used for 3-6 months
| Range | 99999Pa~0.1Pa, 740000~0.75Micron |
| Accuracy | 0.1Pa~1000Pa; Reading±5%(at 20℃) |
| Resolution | 0.1Pa(<10Pa); 1Pa(<100Pa); 10Pa(<1000Pa) |
| Unit | Pa, mBar, mmHg, mTorr, InHg, Microns |

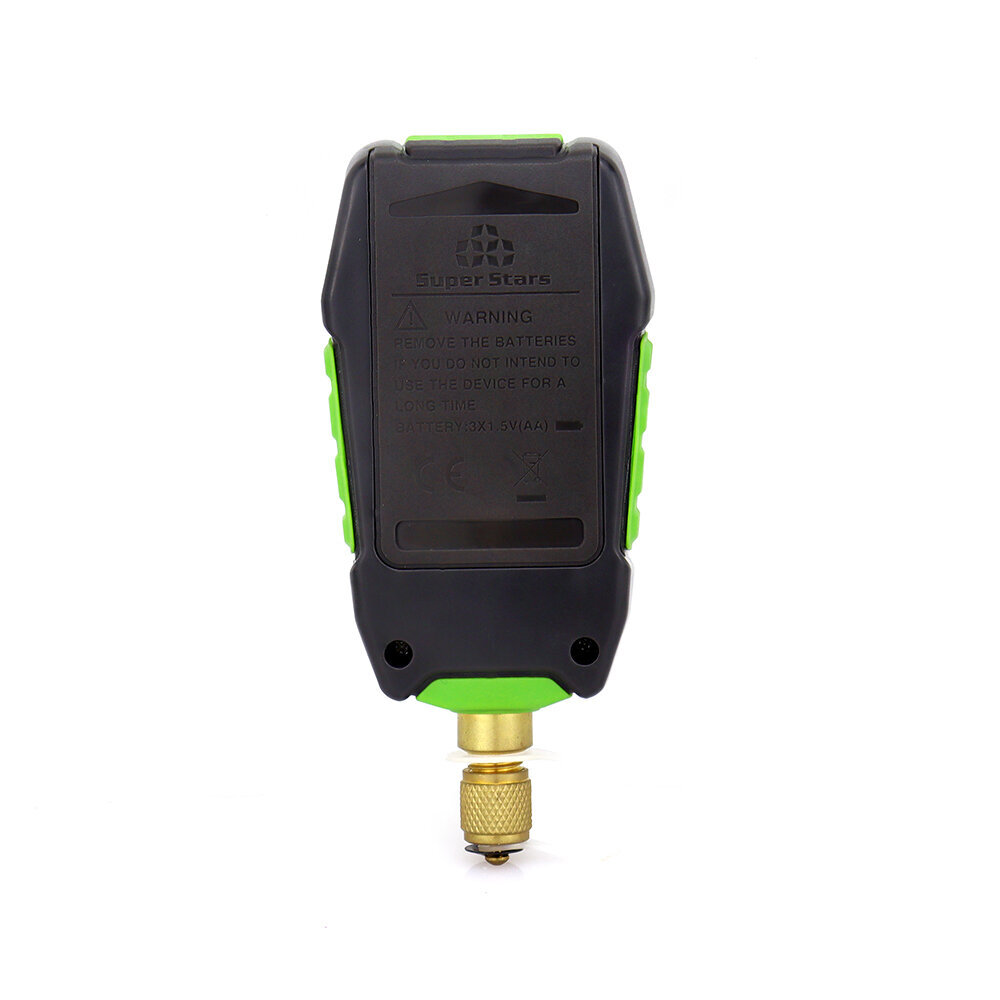

| Battery life | 40 hours(3×AA battery) |
Maximum overload pressure | 0.5MPa/72PSI |
Operating temperature | -5~50℃(-23~122℉) |
Buzzer alarm | 90db,shut down after 10 seconds |
| Inlet port | 7/16"~20UNF(1/4"SAE) |
